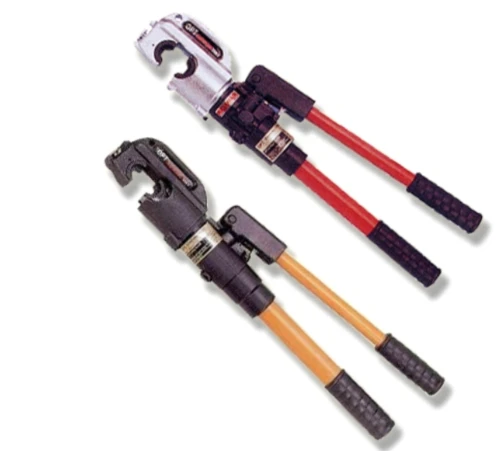

For crimping connectors & cable lugs from 35mm2

to 400mm2.

AWG/MCM 750

Fiber glass handle. Output: 12 Tons.

Standard Dies: 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2.

TP-300: 30mm jaw opening. Length: 610mm, Weight: 6.3kg.

Ordering Information

Z-TOHY-FTP400

TAC HYDRAULIC CRIMP W/DIES 35-400MM TP-400: 38mm jaw opening.

Length: 636mm, Weight: 7.7kg.

Ordering Information

Z-TOHY-T10-400

TAC HYDRAULIC CRIMP W/DIES 35-400MM

TP-600: For crimping connectors & cable lugs from 35mm2 to 630mm2. Below 400mm2 dies need to add die adaptor (AR-630)

AWG/MCM 2/0-1200

Output: 18 Tons. Length: 650mm, Weight: 6.5kg. Standard Dies: 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 400, 500, 630mm2.

Ordering Information

Z-TOHY-T16-630

TAC HYDRAULIC TOOLS W/DIES 35-630MM

TP-630H: For crimping connectors & cable lugs from 35mm2 to 630mm2. Below 400mm2 dies need to add die adaptor (AR-630)

AWG/MCM 2/0-1200

Output: 18 Tons. Length: 240mm, Weight: 4.8kg. Standard Dies: 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 400, 500, 630mm2.

Ordering Information

Z-TOHY-T16-630P

TAC HYDRAULIC TOOLS W/
